SL1288i(HD) Portable Ultrasonic Flowmeter
SL1288i(HD) Portable Ultrasonic Flowmeter
Brand : SiteLab
Certification: ISO9001,ISO14001, CE
Payment & Shipping Terms
Minimum Order Quantity: 1
Delivery Time: 3-5 working days
Payment Terms: T/T,Cash
Main Features
lMeasurable Flow Velocity: ±0.01m/s~±12m/s
lAccuracy: ± 0.5%
lDisplay: 3.5" IPS colorful screen
lPipe Size Range: 25mm~ 5000mm
lData Logging Period: 180 days
lRepeatability: 0.1%
Introduction
The SL1288i high dynamic response portable ultrasonic flowmeter is designed to be compact and lightweight for easy portability. It features a rechargeable battery and universal power supply, allowing you to conduct pipeline measurements anytime, anywhere. The magnetic clamp-on transducer installation is simple and can be attached to metallic pipes with magnetic properties for measurements. It is particularly suitable for on-site flow detection of toxic, highly corrosive media, overhead pipelines, and various pressure-resistant requirements.
The instrument is equipped with a 16G TF card for storage, enabling recording of real-time flow data changes, significantly enhancing the reliability of cumulative flow measurement and the security of data collection.
Applications
Water supply, Water treatment, Irrigation, Boiler, Power plant, sea water metering, salt water metering, etc.

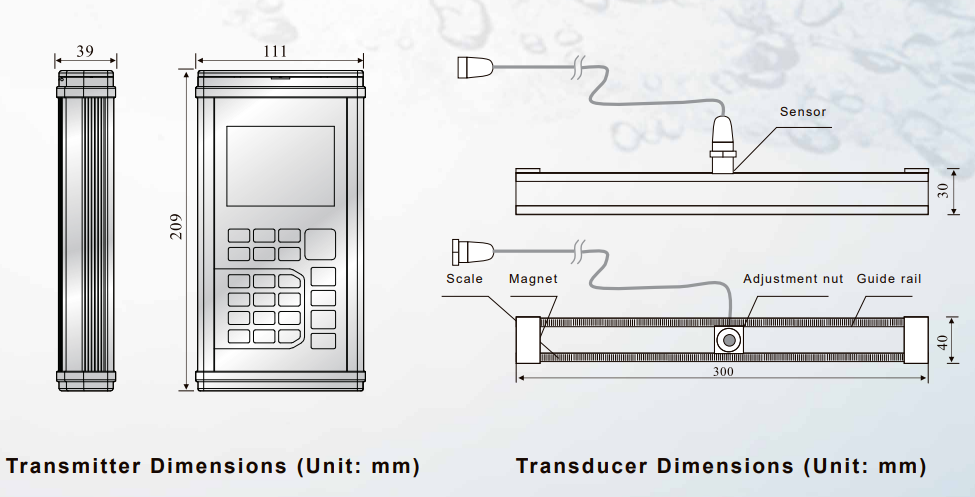

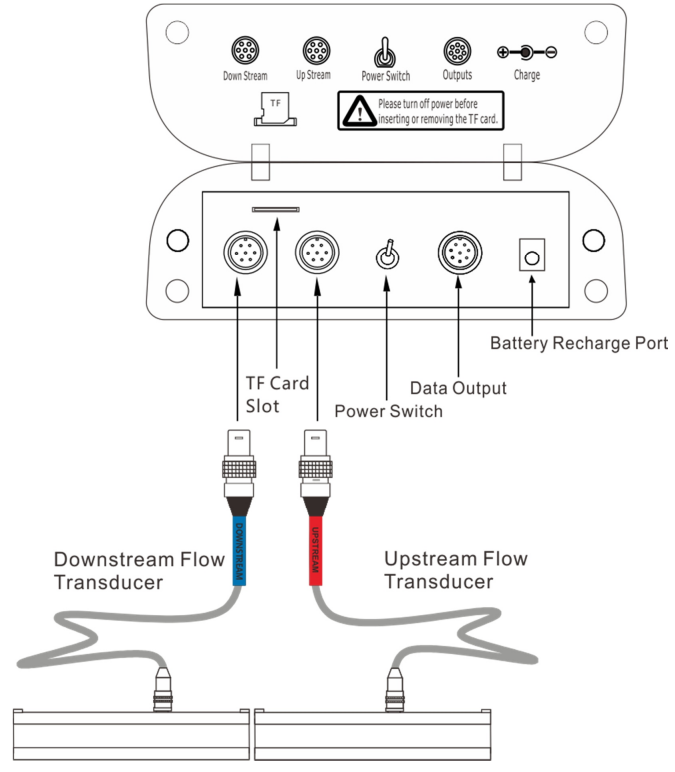

Wiring Diagram&Transmitter Dimensions
Detectable Fluids
Compatible Pipe Materials
