SL1188 ULTRASONIC FLOW METER

Ultrasonic flow meters for higher accuracy and ultimate stability.

Introduction

The SL1188 ultrasonic flowmeter is based on Transit-time technology, which has ultra-high measurement accuracy. SL1188 uses an external clipped Transducer, which can collect flow data simply by clamping it on the outside of the pipe, and it will never come into contact with the fluids, and will not cause liquid pollution, pressure reduction, leakage, etc.

Main Features

* Measuring Range: 0.01 to 12m/s

 Accuracy: 0.5%

Bi-direction flow measurement

Suitable for lined or unlined metal and plastic pipes

Applications

Clamp-on flow measurement of drinking water, process water, sea water, demineralized water, wastewater, HVAC chilled water, and tolerant of liquids with small amounts of air bubbles or suspended solids.

Specifications

PERFORMANCE SPECIFICATIONS



Flow range

±0.03ft/s ~ ±40ft/s 0.01m/s ~ ±12m/s)

Accuracy

±0.5% of measured value (for ±1.5ft/s40ft/s)

Repeatability

0.15% of measured value

Linerarity

±0.5%

Pipe size

1"to 200" (25mm to 5000mm)

FUNCTION SPECIFICATIONS

Outputs

Analog output: 4~20mA, max load 750Ω.
Pulse output: 0~9999Hz, OCT, (min. and max. frequency is adjustable)
Relay output: SPST, max 1Hz, (1A@125VAC or 2A@30VDC)

Communication

RS232 & RS485, Modbus RTU

SD Card

Standard 8GB SD card

1 ~ 3600s interval

Power supply

90 to 245 VAC, 48 to 63 Hz. Or 10 to 36VDC

Keypad

22 keys with tactile action

Display

40 character, 2 line (20×2) lattice alphanumeric, back lit LCD.

Temperature

Transmitter: -40~140(-40~60)
Transducer: -40~176(-40~80, standard C011 transducer)

Humidity

Up to 99% RH, non-condensing

PHYSICAL SPECIFICATIONS

Transmitter

NEMA 4X (IP65), Die-cast aluminum

Transducer

Encapsulated design
double-shielded transducer cable
Standard/maximum cable length:30ft/1000ft(9m/305m)

Weight

Transmitter: approximately 2.15kg;
Transducer: approximately 0.9kg.

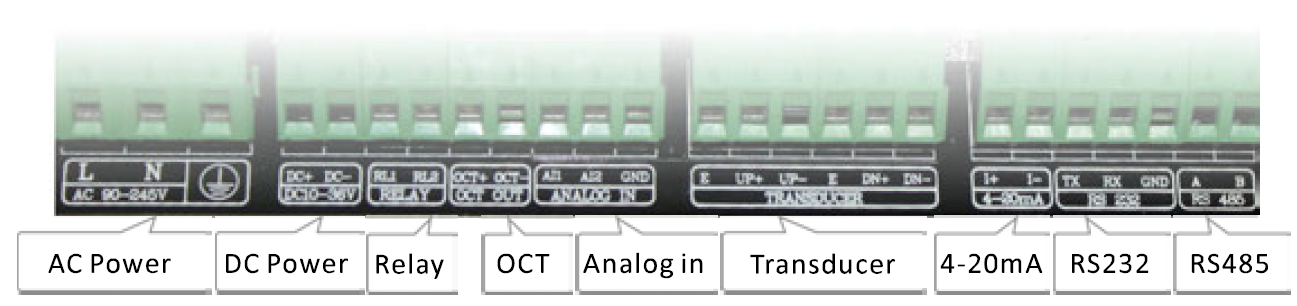

Interface and Size
